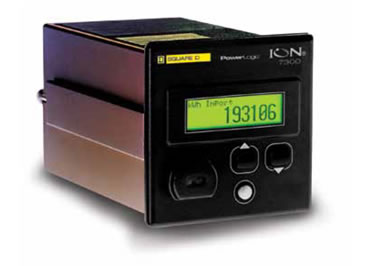

Used in enterprise energy management applications such as feeder monitoring and sub-metering, ION7300 series meters offer unmatched value, functionality and ease of use. ION7300 series meters interface to PowerLogic ION Enterprise® software or other automation systems to give all users fast information sharing and analysis.
The ION7300 series meters are an ideal replacement for analog meters, with a multitude of power and energy measurements, analog and digital I/O, communication ports and industry-standard protocols. The ION7330 meter adds on-board data storage, emails of logged data and an optional modem. The ION7350 meter is further augmented by more sophisticated power quality analysis, alarms and a call-back-on-alarm feature.*
ION7300 series features
Measurements
- Identify the root cause of power quality issues
- Rapidly communicate critical conditions before they escalate
- Decide if harmonic filters are needed and size them appropriately
- Validate that power quality complies with the energy contract
- Verify the reliable operation of equipment
- Improve response to power quality-related problems
- Leverage existing infrastructure capacity and avoid over-building
- Support proactive maintenance to prolong asset life
Internet-enabled communications
- Two RS-485 ports
- Optional built-in modem with ModemGate allows modem access for 31 other devices
- Optional Ethernet port with EtherGate allows direct Ethernet-to-RS-485 data transfer to 31 other devices
- Infrared data port standard
- ModbusTM RTU, Modbus TCP, DNP 3.0 and
- PROFIBUS DP communication protocols
- Call-back feature offers fast alarm response
- Web server, MeterM@ilTM allow distribution of metered data and alarms over the Internet
